Skalapp DV
An automatic belt scale with touch screen interface for mobile crushers/screeners and stationary conveyor belts.
Powered by today’s most advanced weighing technology and high-quality components, Skalapp DV scales provide accurate weighing and monitoring of materials transported by a wide range of conveyor belt systems. They’re a valuable tool in effectively measuring the efficiency of your conveyor system, as well as helping you define and optimize costs for material processing.
Skalapp DV is the answer for keeping track of processed material and downtime on your production line, as well as gathering data from remote machinery, such as a mobile shredder loaned to another plant.
Complete access to all advanced features
Skalapp believes in providing their customers with complete, unrestricted access to the FULL power of its scale technology. No limitations according to subscription levels or extra charges for expansion. You are therefore able to leverage the impressive power of Skalapp DV for all of your conveyor operations and requirements.
Comprehensive monitoring of your conveyor operations
Reduce allMonitored parameters for determining efficiency and costs
- Amount/Weight of processed materials- Flow of processed materials
- Uptime/Downtime of production line
- Start/Stop times
- Operational health monitoring (belt speed, load on weighing frame, tare-load of empty belt)
- Remote monitoring of machinery, such as mobile shredders
- Weighing data assigned to specific orders or contracts, including loading jobs that last several days

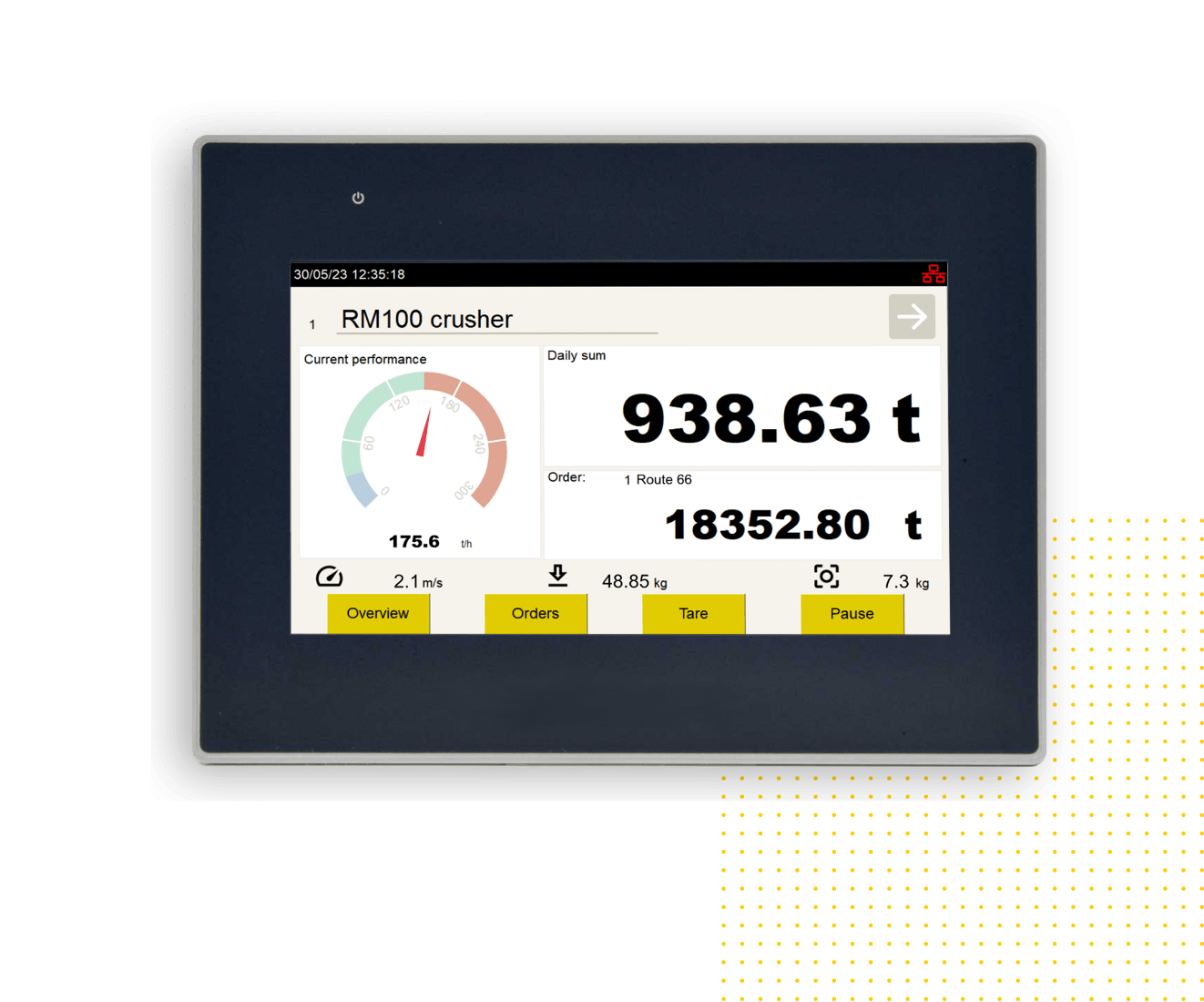

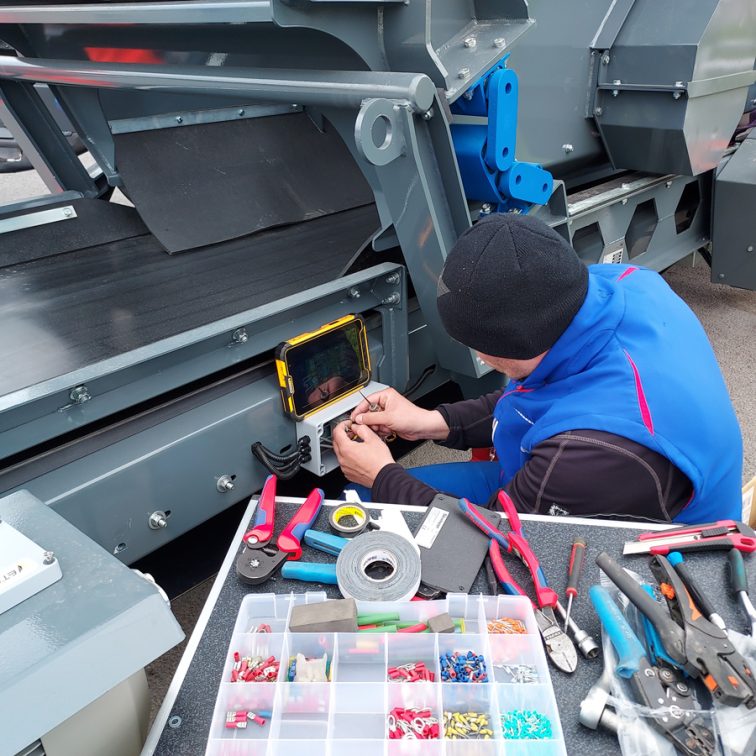

Touch screen control terminal
Detailed performance overview for optimizing your operations
Robust components and remote diagnostics ensure a long service life with minimum downtime
Low profile for flexible installation on all types of mobile or stationary conveyors

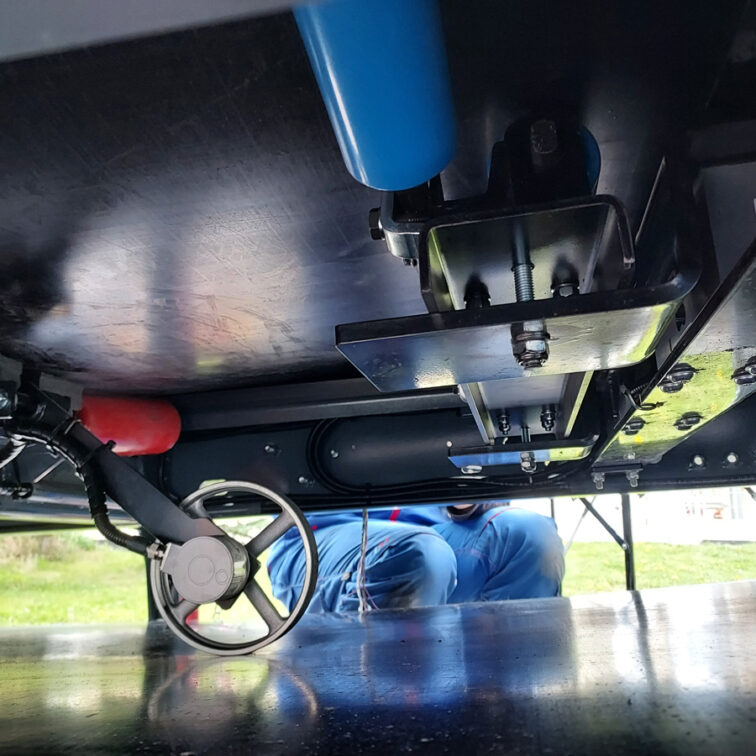

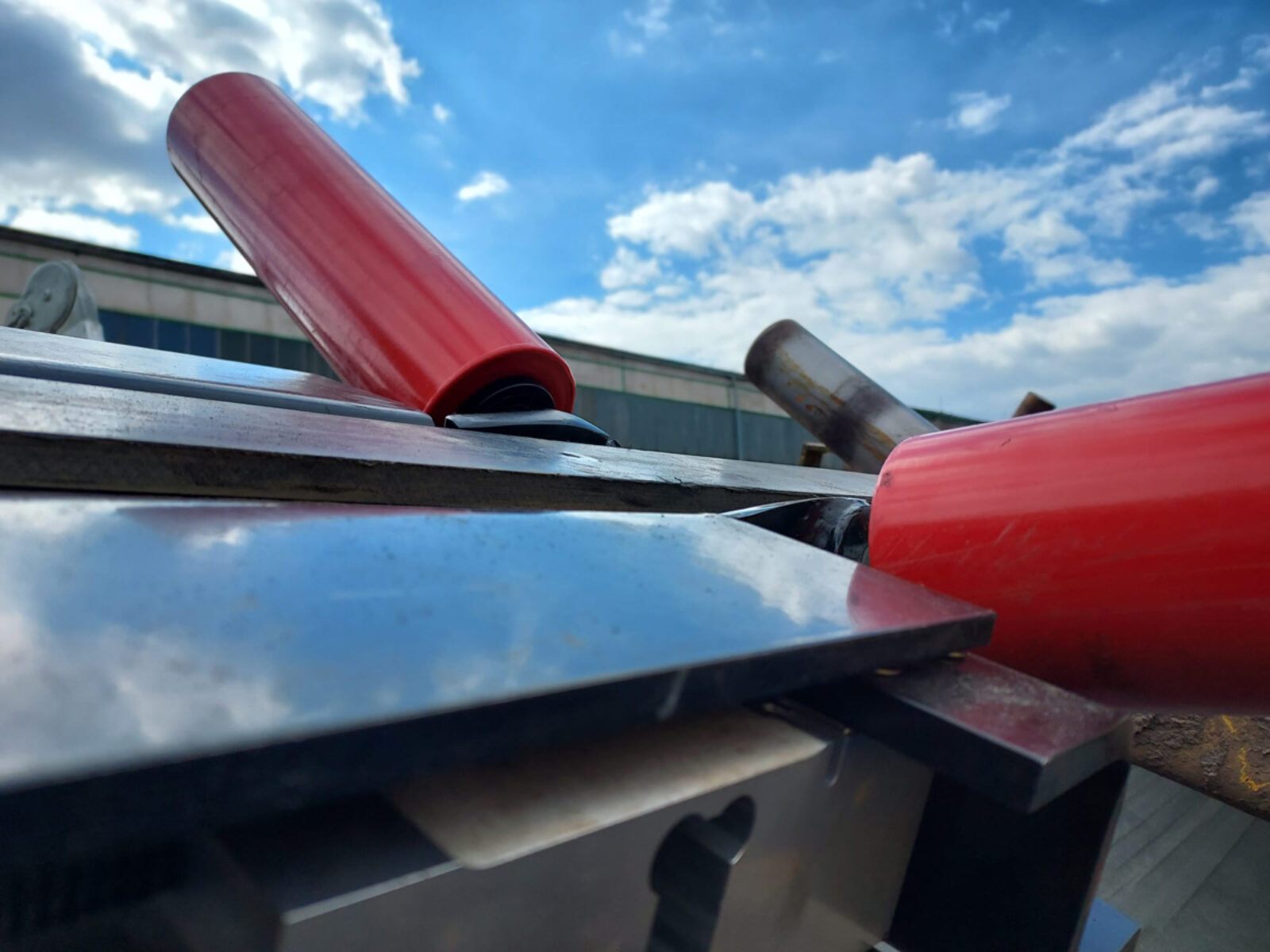

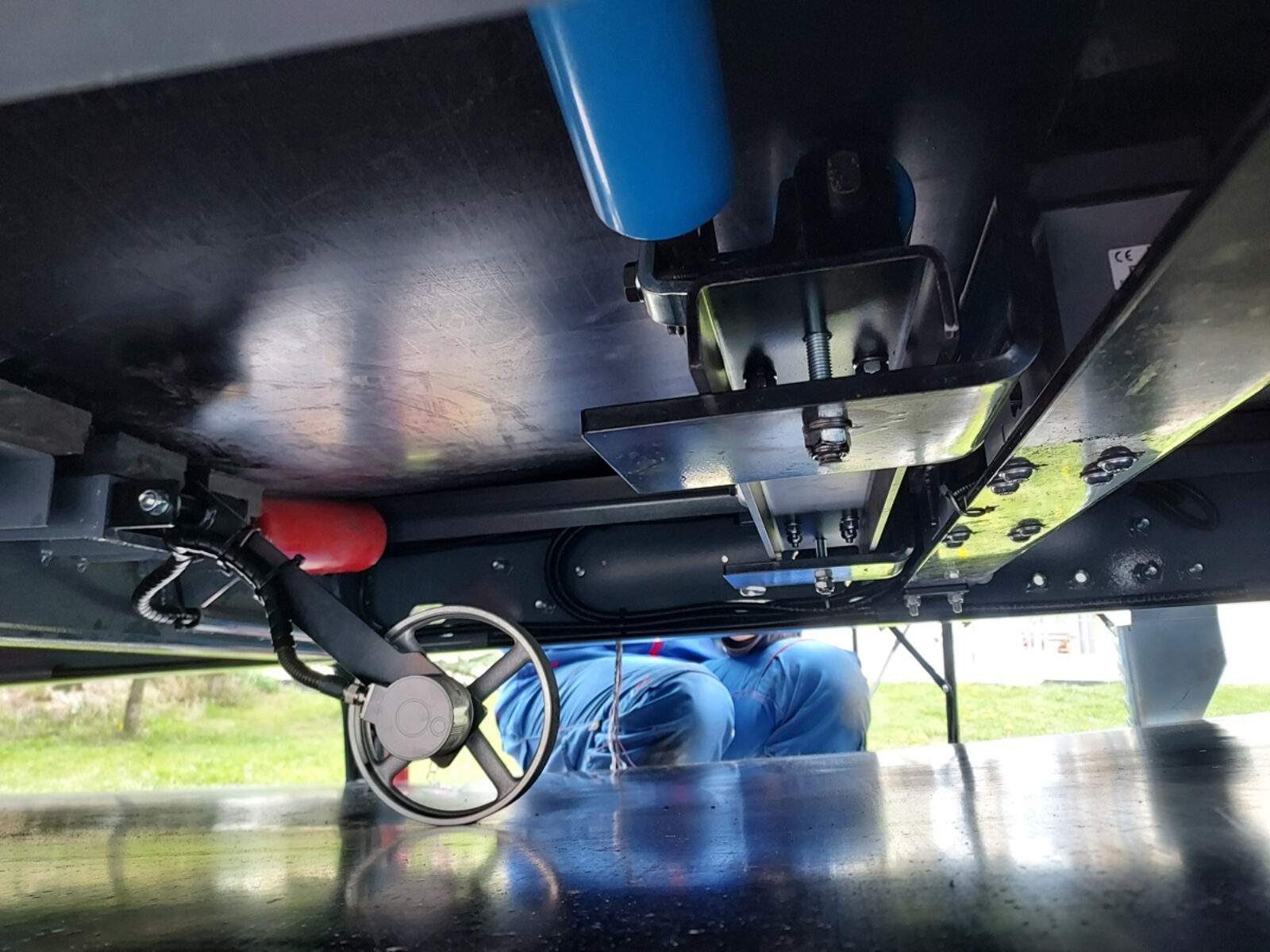

Fully adjustable weighing frame ensures compatibility with a wide range of machinery
Automatic operation for reliable and distraction-free operation
Connection/Monitoring of multiple scales
Compatible with a range of control software

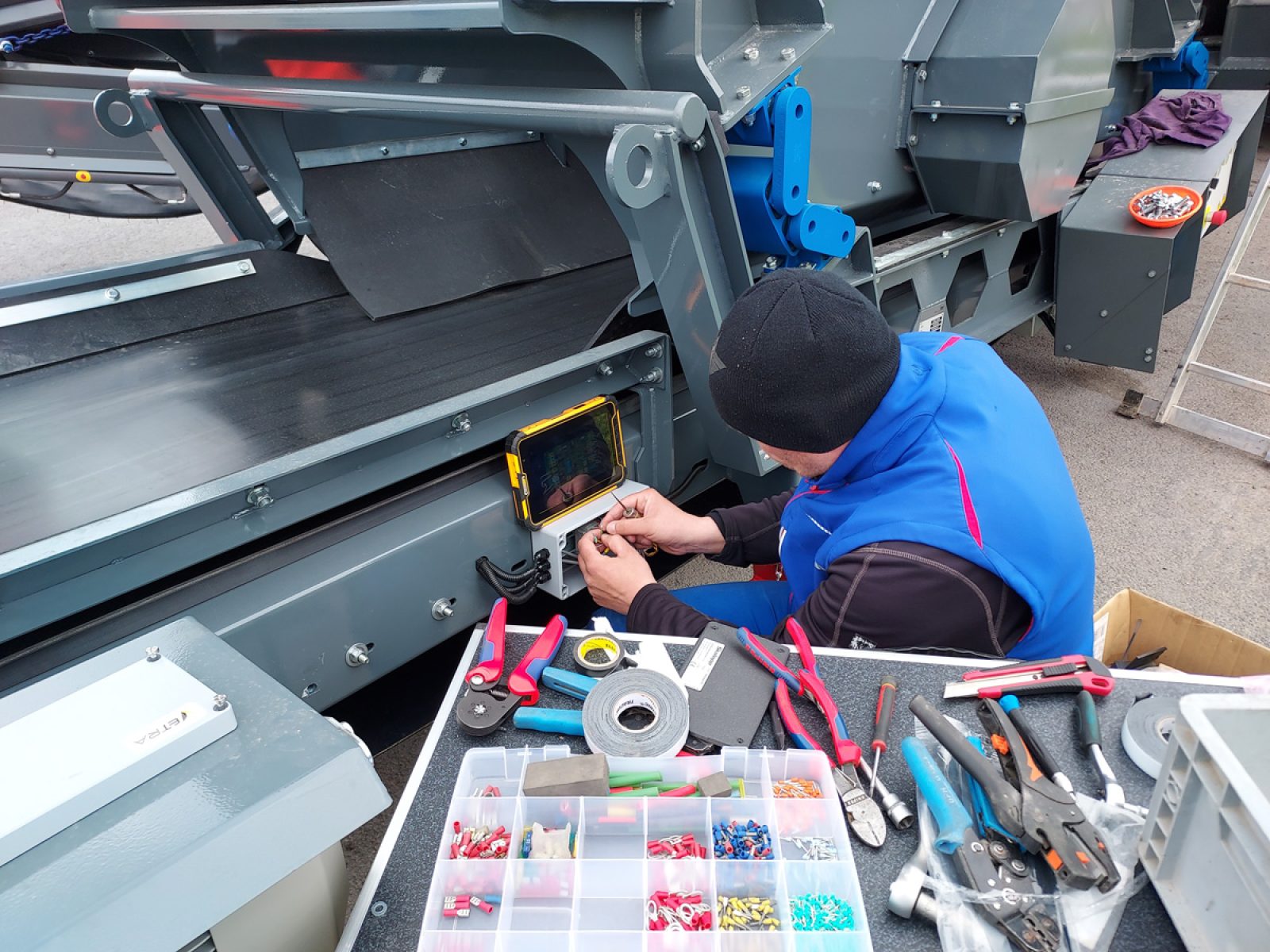

Installation on many types of machinery
Stationary conveyors

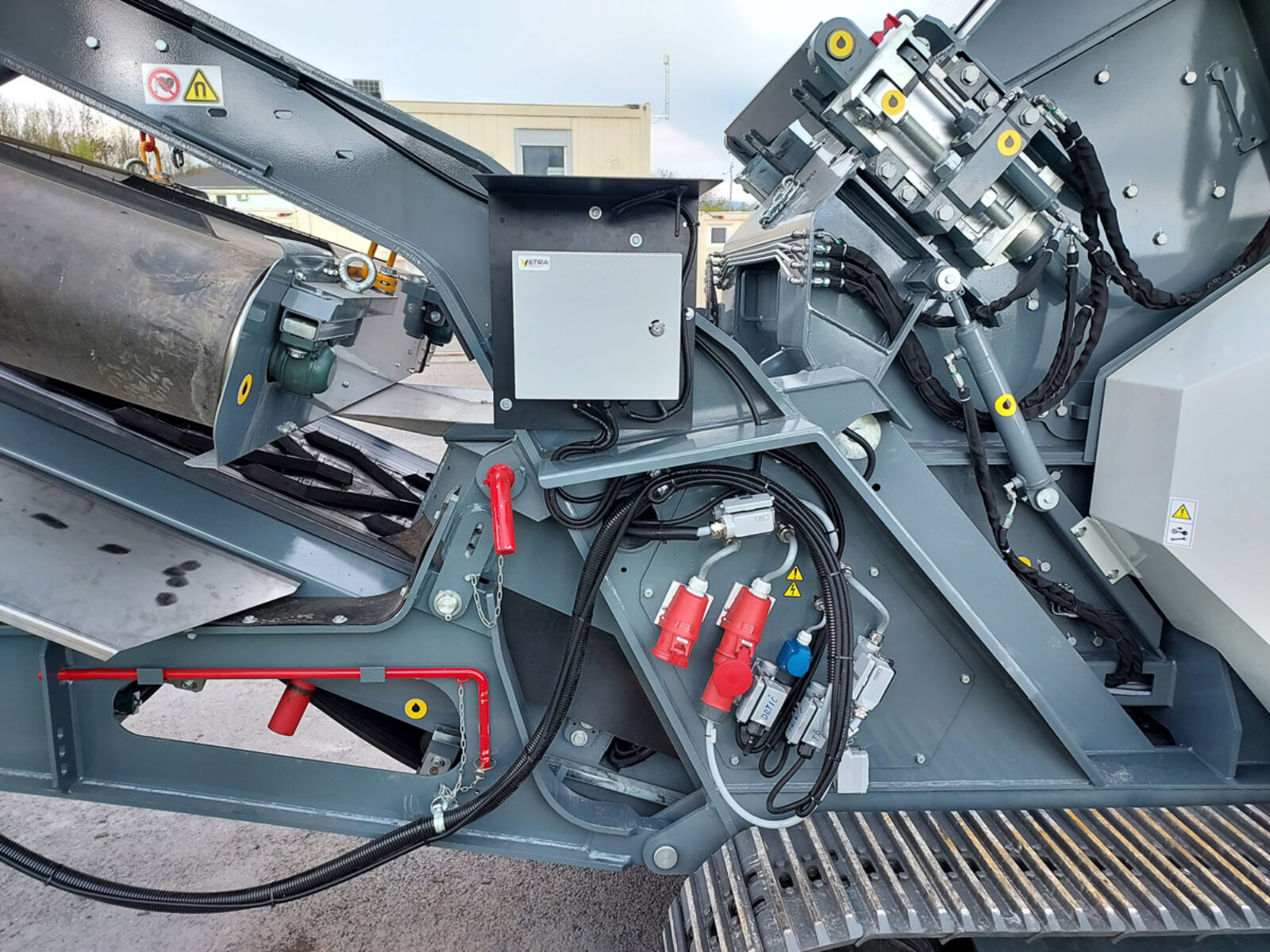

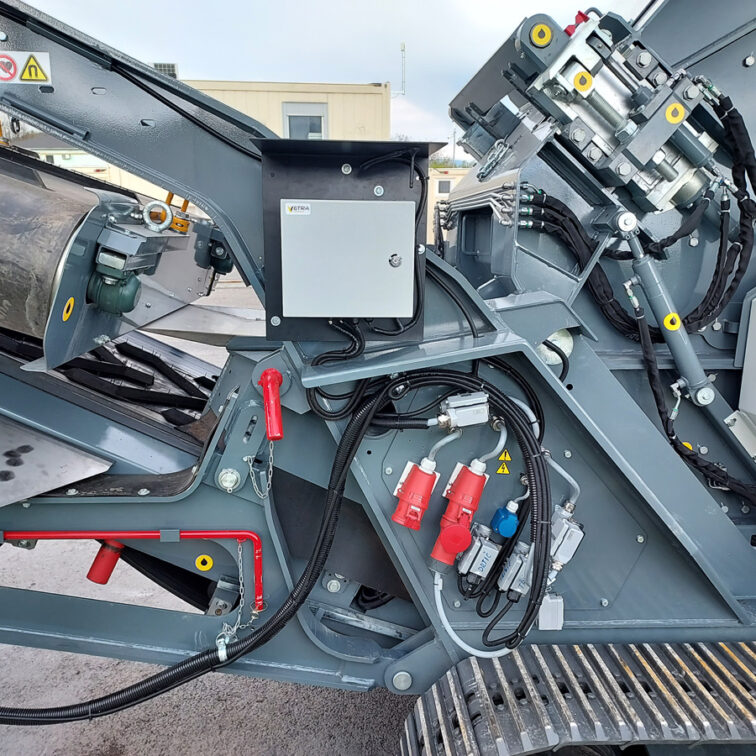

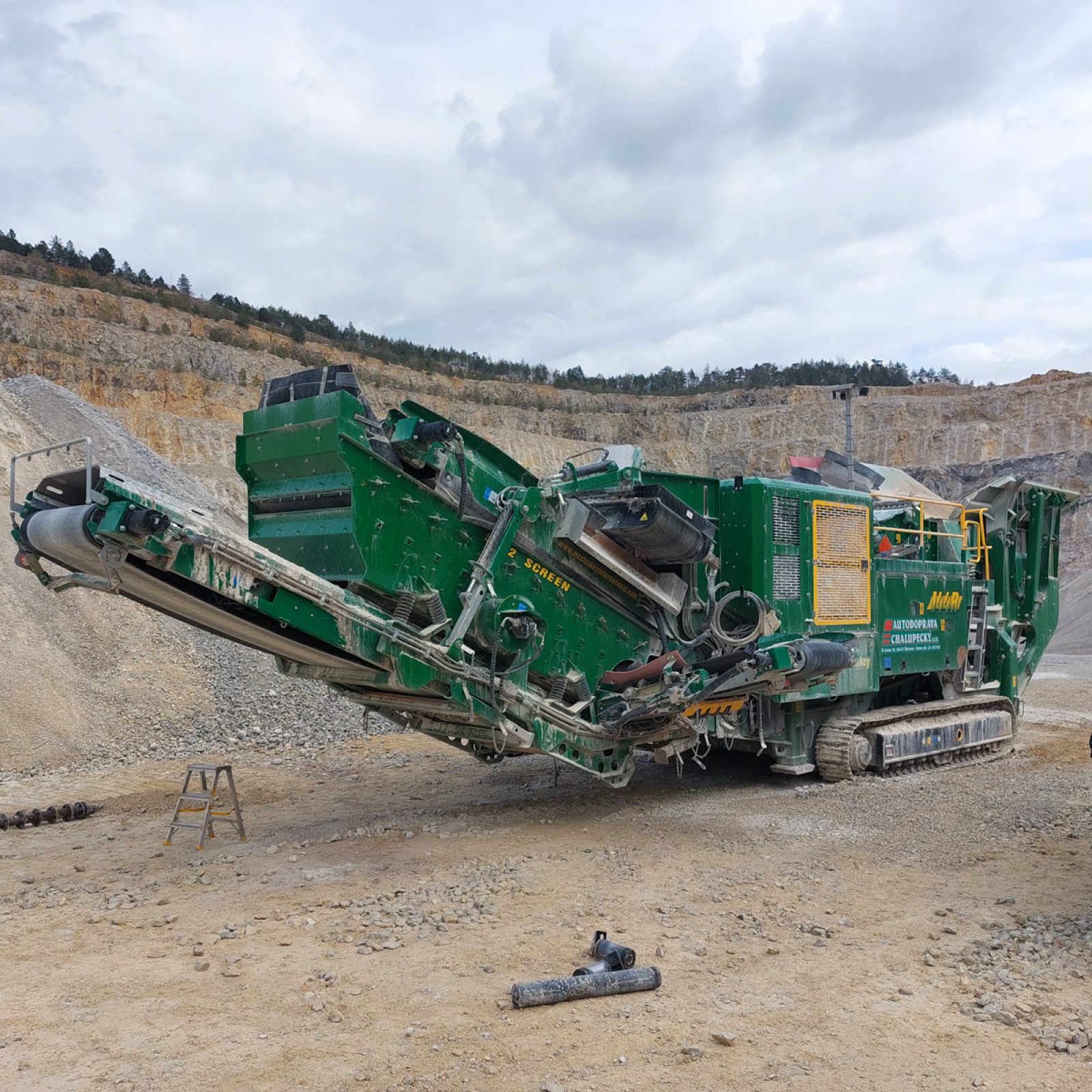

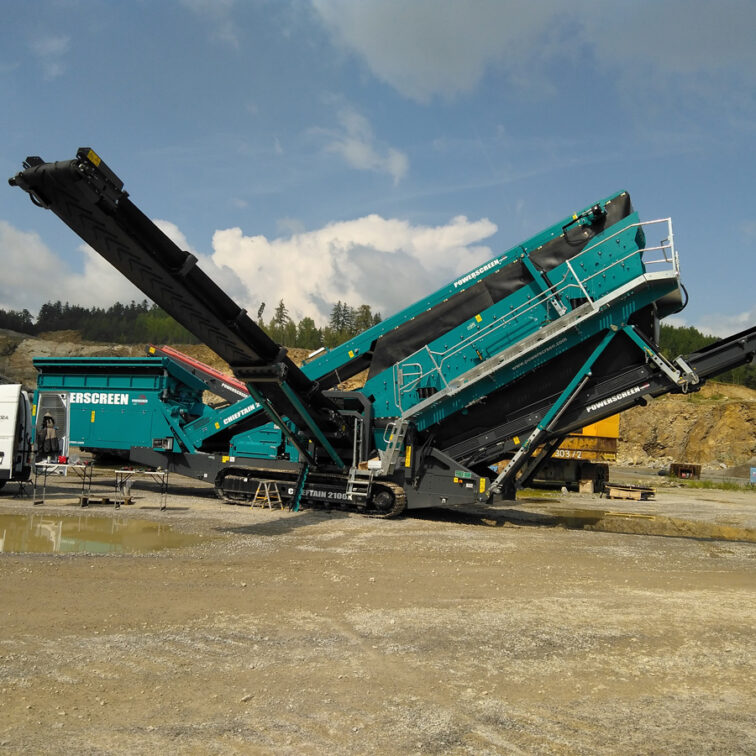

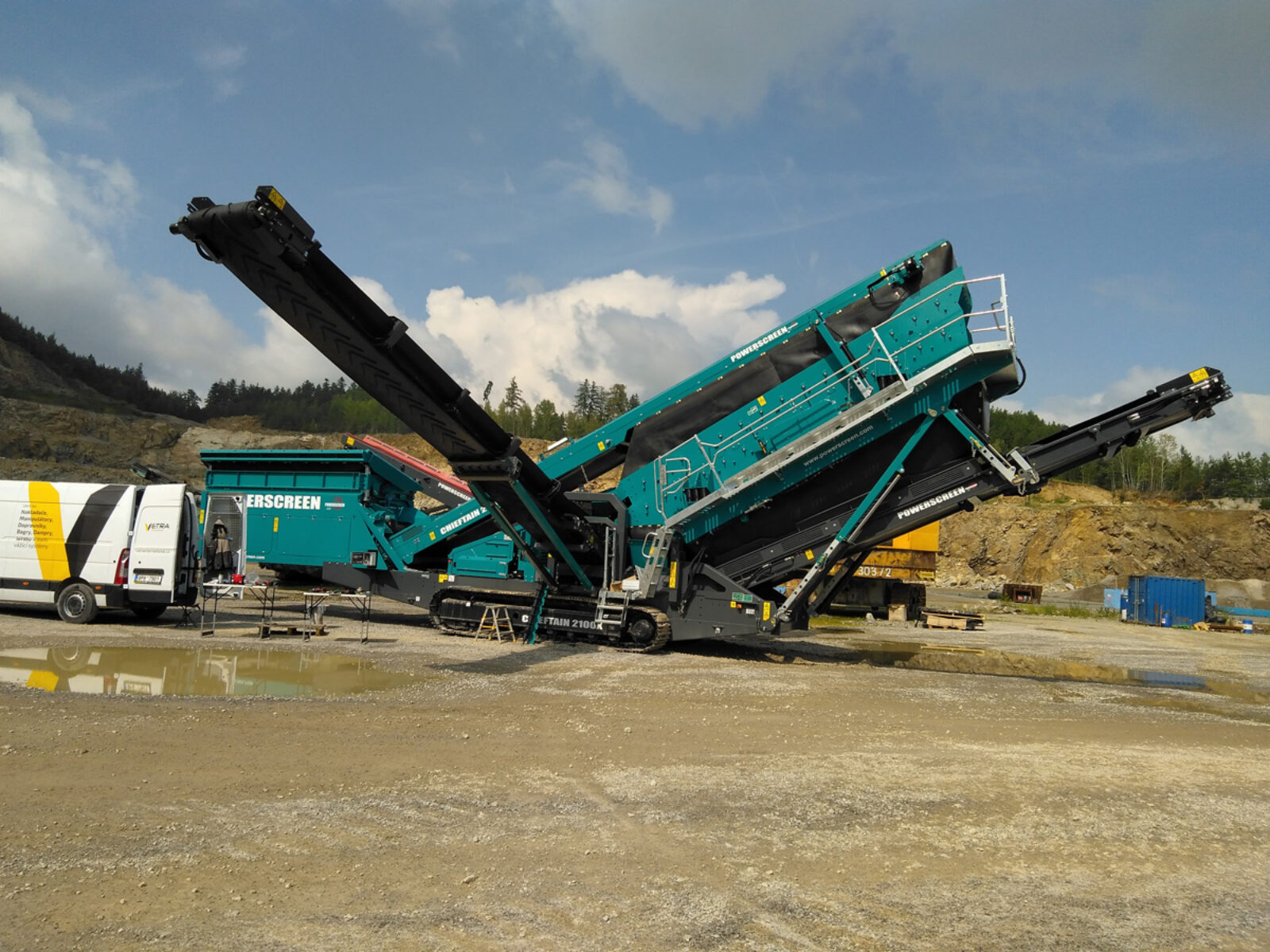

Mobile crushers and screeners
Complex operations requiring multiple scales to be linked and monitored
* Not intended for commercial weighing

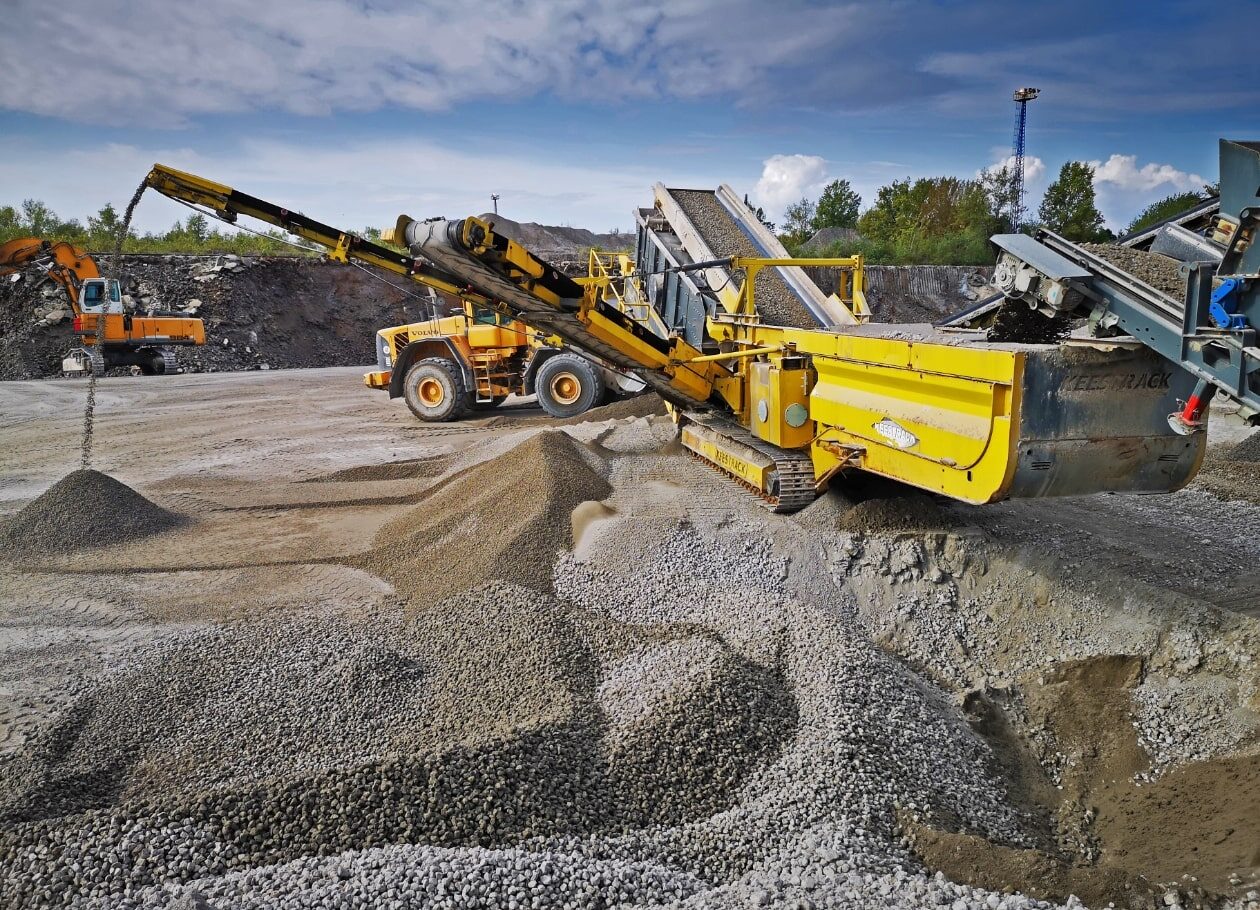

Utilization of data
Order tracking
Performance tracking at 15 minute intervals
Daily performance tracking
Infinite totals
Remote data gathering with Skalapp Online
Monitoring of operational efficiency when idle and under load
Readout values via MODBUS and RS232/RS485 protocols
Features
| Full-featured equipment and functions | |
|---|---|
| Modern touch screen | |
| Measurement of belt speed | |
| Printer connection | |
| Order management | |
| Hourly flow rate | |
| Operational history | |
| Virtual conveyor function | |
| Data transfer to Skalapp Online * | |
| Productivity analysis * |
* Skalapp Online is an optional service
Technical Parameters
|
Minimum Load
|
8 kg/m |
|---|---|
|
Maximum Load of Weighing Plate
|
400 kg |
|
Height of Weighing Frame
|
min 100 mm |
|
Width of Belt
|
Variable (from 500 to 1600 mm) |
|
Weighing sensors
|
1…2 loadcells C3 Accuracy Class in accordance with OIML R60 |
|
Belt Speed Measurement
|
Optometric encoder (-25 to +60 °C) |
|
Voltage Input
|
24 VDC |
|
Control Unit
|
1024×600 pixel touch screen, (0 to 55 °C) |
|
Control Unit Dimensions
|
200 x 146 x 35 mm, weight 600 g |
|
Data Transfer
|
RS232, RS485, Ethernet, 4G* |
|
Outputs
|
2x optional analogue outputs 0-10V, 0-24mA, 1x optional digital output |
Skalapp Online
Remote access to ALL scales at ALL locations
Skalapp Online is an optional cloud service that can be activated for all Skalapp and Skalapp DV scales, accessible from any web browser or Andriod mobile app. Its advanced feature set allows you to remotely connect to your Skalapp scale and instantly access complete, up-to-date weighing data from your entire fleet of scales and conveniently view on your mobile phone, laptop or desktop computer. An added benefit of Skalapp Online is that it makes the work of service technicians easier, as they can monitor your equipment remotely, act faster and thus minimize potential downtime.
Remote access 24/7
Current, encrypted weighing data from every scale at every location via web browser or Android app
Analyze/Assess
Real-time monitoring at 15 min. intervals or access to saved data
Manual operations kept to a minimum
Automated generation/printing of reports and delivery documentation
Full integration
Compatible with your in-house ERP
Optimized across devices
Mobile phones, tablets, computers
Advanced, user-friendly interface
Four categories of loading operations data, with unlimited items saved to memory and a convenient search option
We are a family run company that has specialized in weighing technology for more than 25 years. All design, development and manufacturing for Skalapp and Skalapp DV scales are carried out in-house.
As a result, we have complete control of their components, technology, functions and quality of construction, and stand confidently behind them.
