A full-featured, automatic loading scale with tablet interface for wheeled loaders and forklifts.

The industry-leading technology, wide range of advanced features available for ALL users and use of top tier components make Skalapp scales the right choice for your loading operations.

With Skalapp, you not only save time and money, but also increase safety at your work site by eliminating the chance of overloading and reducing the number of trips to the quarry. Its fully automatic operation, and industry-leading user-friendliness, ensures that its advanced, high-level features can be utilized by every loader and forklift driver.

A complete weighing system for your demanding loading operations

Expand all Reduce all

User-friendly design that machine operators appreciate

Measurements down to a thousandth of a second

User-defined programs

Reliable operation in all environments

In-house design and development

High quality, fully-certified components for superior accuracy and a long service life

Rugged Android tablet control terminal

Fully automatic for increased safety

Trouble-free installation

Remote access to all loading operations and data (optional)

Skalapp

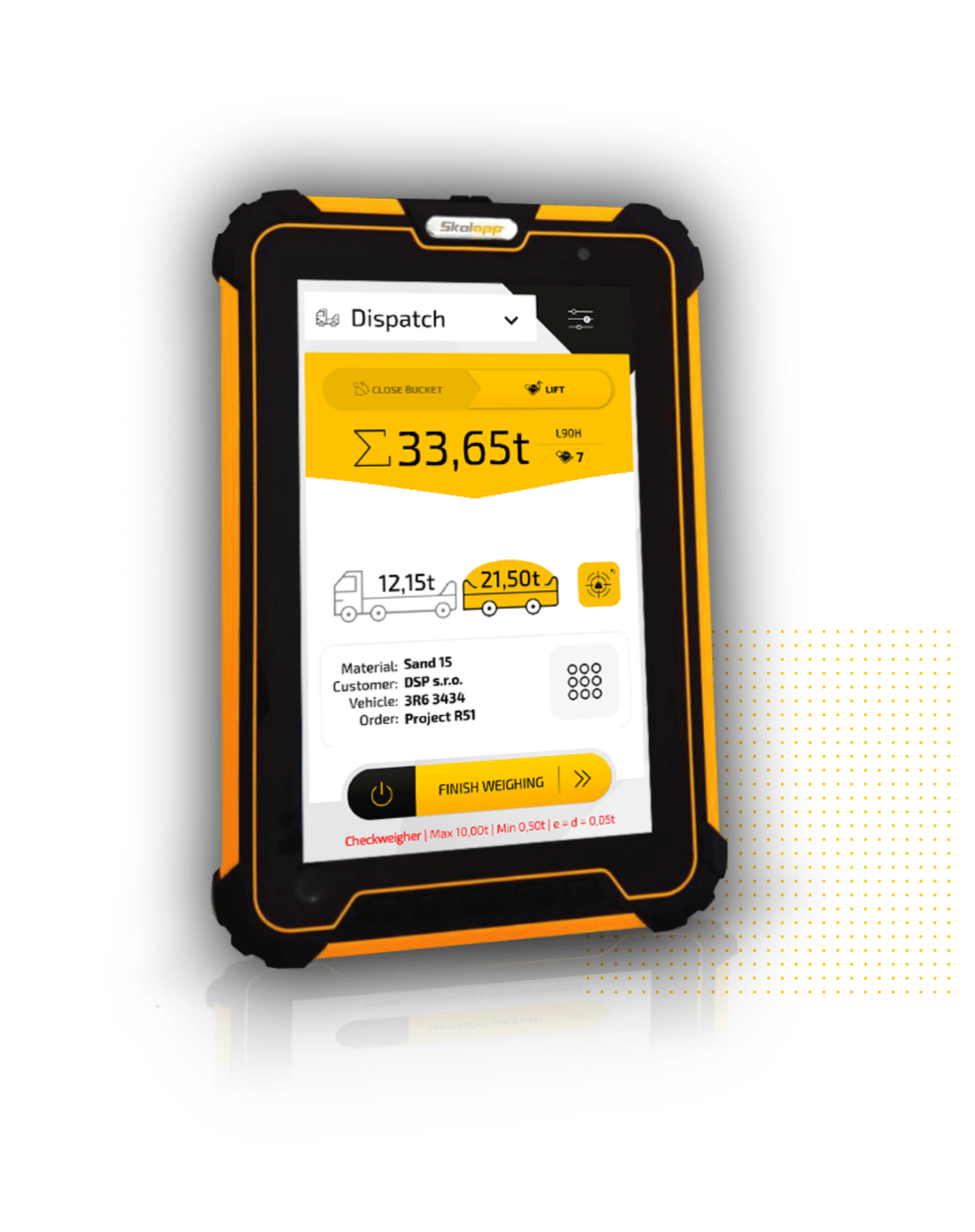

Control tablet with 8” Touch Screen Display

Automatic operation for reliable and distraction-free operation

Real-time monitoring of weight during loading

Highly precise operation protects against overloading for increased safety

Reduced fuel consumption due to elimination of trips to stationary, off-site scales

Robust components and remote diagnostics ensure a long service life with minimum downtime

Quick and easy connection to printer

Compatibility with a wide range of older and newer wheeled loaders and forklifts from a long list of manufacturers

Features

Legal for trade Class Y(b)
Dynamic weighing
Printer connection
Customized print layout
Weighing attachments Max. 5
Weighing data memory 12 700
Master data tables 5
Master data records Unlimited
Number of users Unlimited
GNSS (GPS, Galileo, BeiDou)
Target weight
Summary document
Price calculation
Skalapp Online (optional)
Local data export (Bluetooth)

Technical Parameters

Weighing Accuracy
According to Class Y(b)
Intervals (according to maximum weighing capacity)
10, 20, 50 kg
Minimum weighing capacity
100 kg
Operating temperature
-10° C to +40° C
Terminal durability
IP 67, MIL STD+810G
Input voltage
12/24 VDC
Measurement of hydraulic pressure
2 digital pressure sensors
Inclination monitoring
Contactless sensors for bucket, boom and machine
Display
8“ touch screen, 800 x 1280 pixels
Data transfer
WLAN IEE802.11 a/b/g/n/ac
LTE Band 38, 39, 40 41
Bluetooth 4 .0
Location tracking
GPS, BDS, GLONASS
Control panel dimensions, Weight
232 x 158 x 22 mm, 810g

Skalapp Online

Remote access to ALL scales at ALL locations

Skalapp Online is an optional cloud service that can be activated for all Skalapp and Skalapp DV scales, accessible from any web browser or Andriod mobile app. Its advanced feature set allows you to remotely connect to your Skalapp scale and instantly access complete, up-to-date weighing data from your entire fleet of scales and conveniently view on your mobile phone, laptop or desktop computer. An added benefit of Skalapp Online is that it makes the work of service technicians easier, as they can monitor your equipment remotely, act faster and thus minimize potential downtime.

Remote access 24/7
Current, encrypted weighing data from every scale at every location via web browser or Android app

Analyze/Assess
Real-time monitoring at 15 min. intervals or access to saved data

Manual operations kept to a minimum
Automated generation/printing of reports and delivery documentation

Full integration
Compatible with your in-house ERP

Optimized across devices
Mobile phones, tablets, computers

Advanced, user-friendly interface
Four categories of loading operations data, with unlimited items saved to memory and a convenient search option

Skalapp

We are a family run company that has specialized in weighing technology for more than 25 years. All design, development and manufacturing for Skalapp and Skalapp DV scales are carried out in-house.

As a result, we have complete control of their components, technology, functions and quality of construction, and stand confidently behind them.
